Smart Interactive Whiteboard 65'' Intelligent Interactive Flat
Panel For Office/School
Design Features

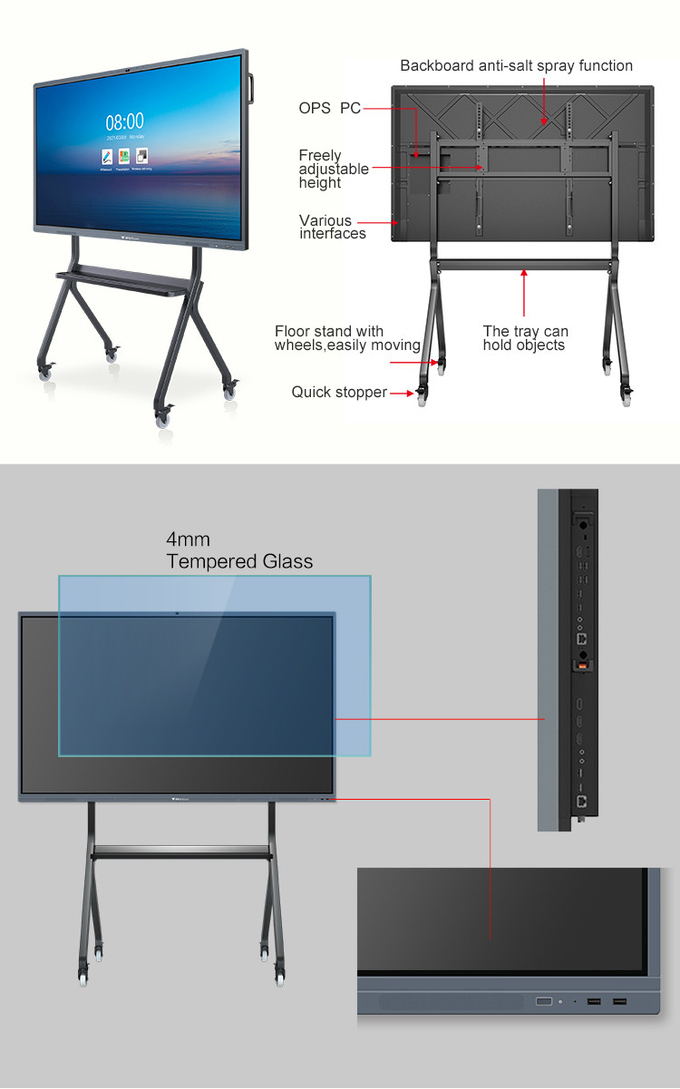

1. It adopts anodized surface technology, all-aluminum alloy
ultra-narrow frame, round corner design.
2. 4mm anti-glare tempered glass.
3. Support 20 points IR touch writing experience.
4. The OPS host module adopts a pluggable structure design, which
is convenient for inspection, maintenance and upgrade.
5. Dual-channel PC/Android shared interface, 1 TOUCH-USB, 1HDMI
interface for users to expand.
6. One-key start button: Power, Input, Menu, V+, V-, ECO, Home, and
independently configured OPS computer channel switching buttons,
easy to understand and operate.
7. Built-in 8 mega pixels camera, six-array microphone, 8m pickup
distance.
8. The machine intelligently senses the changes in the ambient
light and lighting, then automatically adjusts the screen
brightness to achieve the best display effect in different lighting
environments, effectively protecting the users' eyesight, and
achieving energy-saving effects.
9. Intelligently identify the signal source, and automatically jump
into the port channel when the external signal is received.
10. Support the pull-up touch menu at the bottom machine,
full-channel annotation, board in board, two-color writing,
brightness adjustment, screen shots, and quick whiteboard
operations and etc.
11.Smart cloud annotation, QR code scanning and sharing, mobile
screen projection, wireless screen, remote meeting, VIP reception
and other functions.
12. Laser making logo.
13. All in one in this solution:Smart conference whiteboard
H7Q=PC+TV+Projector+Screen+Electronic Whiteboard+Advertising
Player+Tablet+Speaker.
Product Details:
II.Details
III. Specification
| Screen size | 65’’/75’’/86’’/100'' |
| Built-in System | Android 8.0 |
| CPU | Dual-core A73+Dual-core A53 |
| GPU | Quad-core Mali-G51 |
| RAM (running memory) | 4G |
| ROM (storage) | 32G |
| Touch Technology | Infrared touch |
| Touch points | 20 points |
| Input way | finger touch,pen,or any opaque object |
| Touch life times | Over 60,000,000 times |
| Touch response speed | 8ms |
| Display Type | DLED |
| Resolution | (3840*2160 UHD option) |
| Brightness | 350(cd/m2) |
| Ratio of display | 16:9 |
| Best viewing angle | up:73 down:73； left:73 right:73 |
| Max. viewing angle | 178° |
| Contrast ratio(Typ) | 4000:1 |
| Glass type | 4mm tempered glass |
| Glass transmittance | 95% |
| Front Buttons: |
| Power button*1;USB*2 |
| Front ports: |
| HDMI*1;Touch out*1;MV in*1 |
| Back ports(Ⅱ):(Exact ports info. depends on the model of OPS PC) |
| DC(9V-12V)*1;MIC*1;AUDIO*1;LAN*1;USB3.0*2;USB2.0*2;HDMI*1;VGA*1 |
| Power of display | 200W |
| Colors | 1.07B(10bit) |
| Life time | 80,000h |
| Working voltage | 60-120HZ 100-250V |
| Standby power | ≤0.5W |
| Working temperature | 0℃~40℃ |
| Storage temperature | -20℃~60℃ |
| Working humidity | 10%~90%RH |
| Power of speaker | 8Ω10W*2 |
| Frame material | Alloy |
| PC System(Opional) | |
| CPU | 4/8th generation intel i5 |
| RAM | 8GB |
| Memory | 256GB SSD |
| Windows OS | Windows 10 without license(license option) |
| Accessories | Wall bracket/movable floor stand/pen/remote control/WIFI antenna |
| Warranty | 12 months |
| Package | 3cm thickness Honeycomb box |
The appearance parameter
| SIZE | Display size
(inch/mm) | Overall size/Weight
W*D*H(mm)/kg | Packing size/Weight
W*D*H(mm)/kg | QTY of containers(pcs)
20'GP/40'GP/40'HQ |
| 65" | 1428*804 | 1489*906*89/37.5 | 1656*204*1050/49.8 | 79/183/197 |
| 75" | 1650*928 | 1710*1029*89/52.3 | 1886*210*1196/66.2 | 59/137/148 |
| 86" | 1895*1066 | 1957*1169*90/69.8 | 2134*210*1334/89.4 | 53/123/133 |
| 100" | 2159*1214 | 2245*1323*90/102 | 2483*376*1493/136 | 20/47/50 |
